Building Automation Dashboard

Dashboard v2.1 - Crestron TSW series touch panel support.

Dashboard v2.0 - w/ Scheduled Events and DMX-512 Released -  The initial Event Scheduler has been Released with support for; Crestron, DMX-512 Lighting Systems  & Typical control of CBW X300 Relay & Sensors devices.


Support of Crestron Control System Scheduling will also continue in beta with expected updates into January. Get access to beta code: mailto:support@Linked2Software.com?subject=Please send me link to Beta releases.

.

Building/Lighting Automation Dashboard

Many buildings in the past were just not large enough for traditional Building Automation and so the maintenance staff were charged with manual control.

The Linked2 Building Automation Dashboard is a low cost, high value service that is a unique solution designed specifically for the small and mid-sized building. These buildings were ignored in the past, but need to be more energy efficient and self managing today. Linked2 can easily meet your building needs with the Building Automation Dashboard.






Applications    Features
  • Lighting Control
  • Manage/Schedule Lighting including Color LEDs via DMX-512.
  • Manage large numbers of Remote Buildings from a single Dashboard. Perfect for regional and satellite offices... Or use our Cloud Services.
  • Central Scheduling of Campus Buildings, or Buildings anywhere.

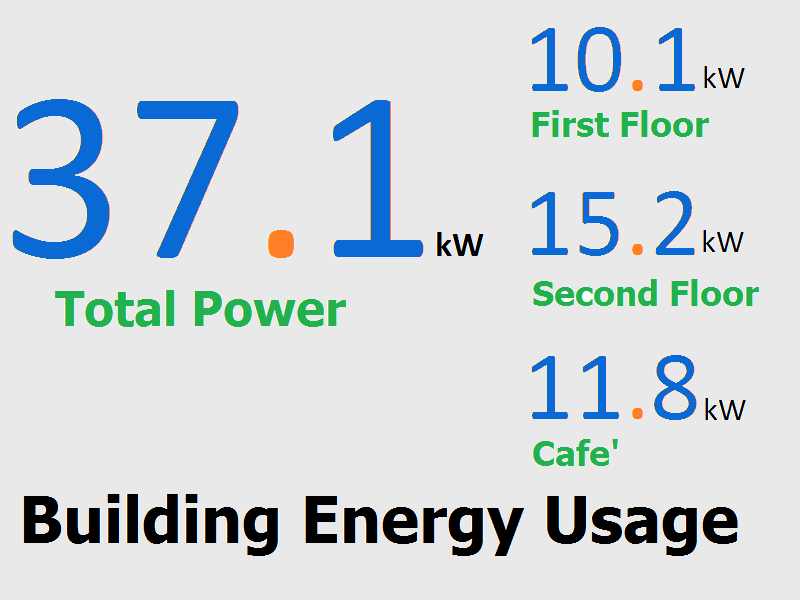

  • Monitor/Track Energy usage from any  building connected to the internet.

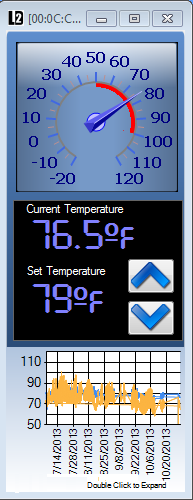

  • Monitor/Track Temperature and Control/Schedule Thermostats.
  • Document and Manage Energy Compliance for LEED certifications.







Monitor/Chart up to 25 temperature sensors.

Monitor/Chart/Control up to 25 Thermostats.

Monitor/Chart up to 25 Energy Sensors.

Manage up to 100 zones of Lighting.

Manage 16 DMX-512 Lighting devices (Enttec USB-DMX).

Crestron DMX-512 Control via Dashboard.

Monitor up to 30 Audio Visual Controllers.

Schedule up to 50 Automation Events a day.

Schedule DMX-512 Architectural Lighting.

Schedule up 30 AV room controllers.
    Linked2 Guarantees you will save more than the cost of the service, and will greatly increase the Convenience and Safety of your Building Lighting Controls.

Building Dashboard Service Pricing:



Purchase Price:



$1,195 /year

Includes Qtrly updates

$2,995

w/ Yearly Service Agreement $295

Pre-Built Package w/ Industrial Win-7 PC:



$1,895 - Includes Industrial PC, Enttec OpenDMX,

Complete Dashboard installation and configuration.

Setup for Remote Desktop access.

Requires service contract. $1,195 /year.

Building Dashboard Pro:    Estimated Release Q1-2015

.

     Request Info or Download the Free version: mailto:info@linked2software.com?subject=Building Automation Dashboard

Ready to Install Lighting Systems



Complete line of "Energy Manager" retro-fit wireless Crestron control packages.

Completely configured and ready for immediate installation and energy savings.

Guaranteed to save installation time and costs over traditional systems - then pay for itself in savings.


Energy Manager:

    Board Room

Energy Manager:

      Office

Energy Manager:

  Small Building







  • 5 wireless dimmable switches
  • 6-button preset keypad
  • 1 wireless gateway
  • 1 control point for iPad
  • 1 wireless thermostat
  • preloaded control Software
  • 4 configurable lighting presets
  • out-of-box ready to install
  • 10 dimmable wireless switches
  • 1 wireless gateway
  • 1 control point for iPad
  • 2 wireless thermostats
  • preloaded control software
  • 1 6-zone control keypad
  • L2 occupancy applet for PC
  • out-of-box ready to install

  • 15 dimmable wireless switches
  • 1 iPad 16GB w/Mobile Pro
  • 1 control point/GW for iPad
  • 3 wireless thermostats
  • preloaded control software
  • 3 4-zone control keypads
  • L2 occupancy applet for PC
  • 3 occupancy sensors
  • Contact us for more information.

    Optional Polycom VTC Control

    plus $39.95 a month for L2 remote Monitoring/Mgmt

    (1 Yr Service)

    Contact us for more information.

    Optional Link to EM:Board Room

    plus $59.95 a month for L2 remote Monitoring/Mgmt

    (1 Yr Service)

    Contact us for more information.

    Optional Link to EM:Board Room

    plus $99.95 a month for L2 remote Monitoring/Mgmt

    (1 Yr Service)



     *iPad  & Crestron Mobile Pro not included



      *iPad & Crestron Mobile Pro not included
